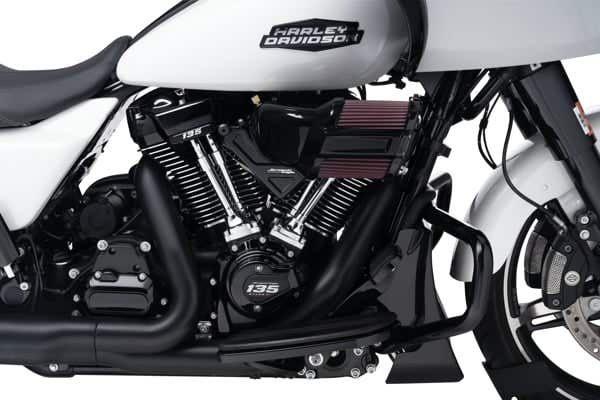

Harley-Davidson STAGE 135 CRATE ENGINE (BLACK HIGHLIGHTED/CHROME)

For riders demanding uncompromised performance, the Screamin’ Eagle 135-Cubic-Inch Crate Engine delivers the most displacement and power ever produced by Harley-Davidson for a street-compliant crate engine. Built from the ground up in Milwaukee and engineered for high-speed, wide-open throttle performance, this street-tuned engine provides instant passing power and peak performance from cruising speeds. With 144 horsepower and 149 ft-lb of torque at the rear wheel, the 135ci engine features a compression ratio of 11.6:1 and exclusive 135 & Stage IV badging on the cylinder heads and timer cover.

FEATURES

• Street-tuned 135-cubic-inch Screamin’ Eagle crate engine

• 144 horsepower and 149 ft-lb of torque for maximum performance

• Designed for wide-open throttle and high engine speeds

• Tested and engineered by Harley-Davidson Factory Racing Team

• Bolt-in installation compatible with Original Equipment-style Touring chassis

DETAILS

• Components include: CNC-ported cylinder heads, SE8-550 high-lift cam, high-compression forged pistons, 68mm throttle body, Extreme Flow 68mm intake manifold, high-performance cam bearing and tappets, patent-protected 4.31 steel sleeve cylinders, 4 5/8” flywheel, 6.8 g/sec fuel injectors, Pro Billet Cam Plate and Oil Pump

• Factory assembled in Milwaukee, Wisconsin

• Designed for maximum displacement, compression, and flow

• Note: Screamin’ Eagle products may not be street legal in all countries; check with local dealer
