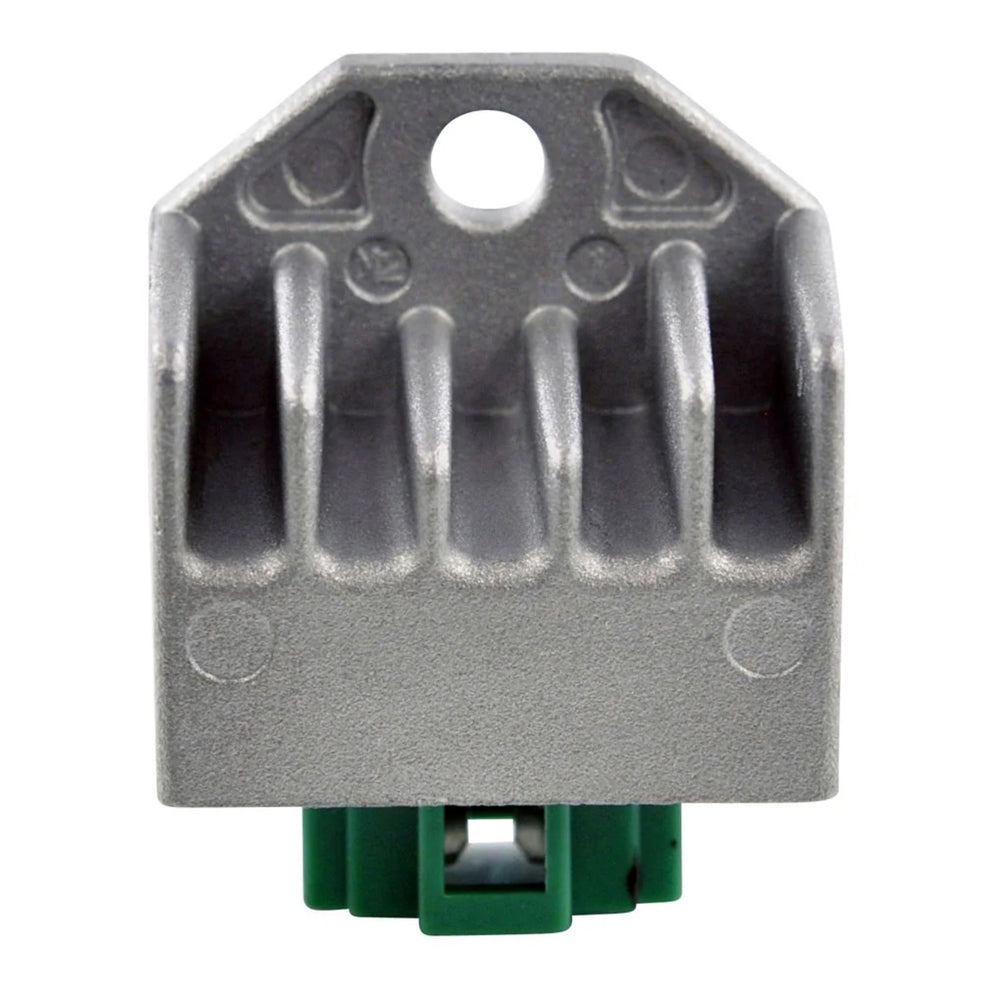

Voltage Regulator Yamaha TTR110 / 125 / 230 / KAW KLX140 / 450R '95-'24

Brand new aftermarket voltage regulator rectifier.

Features:

• Direct replacement to your original unit.
• Plug-and-play direct fit easy installation.
• No assembly required.
• Higher grade of electric components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions:

• Width: 41mm
• Length: 50mm
• Height: 27mm

Other specifications:

• Number of plugs: 1
• Number of pins: 4
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 20 A / 150 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
