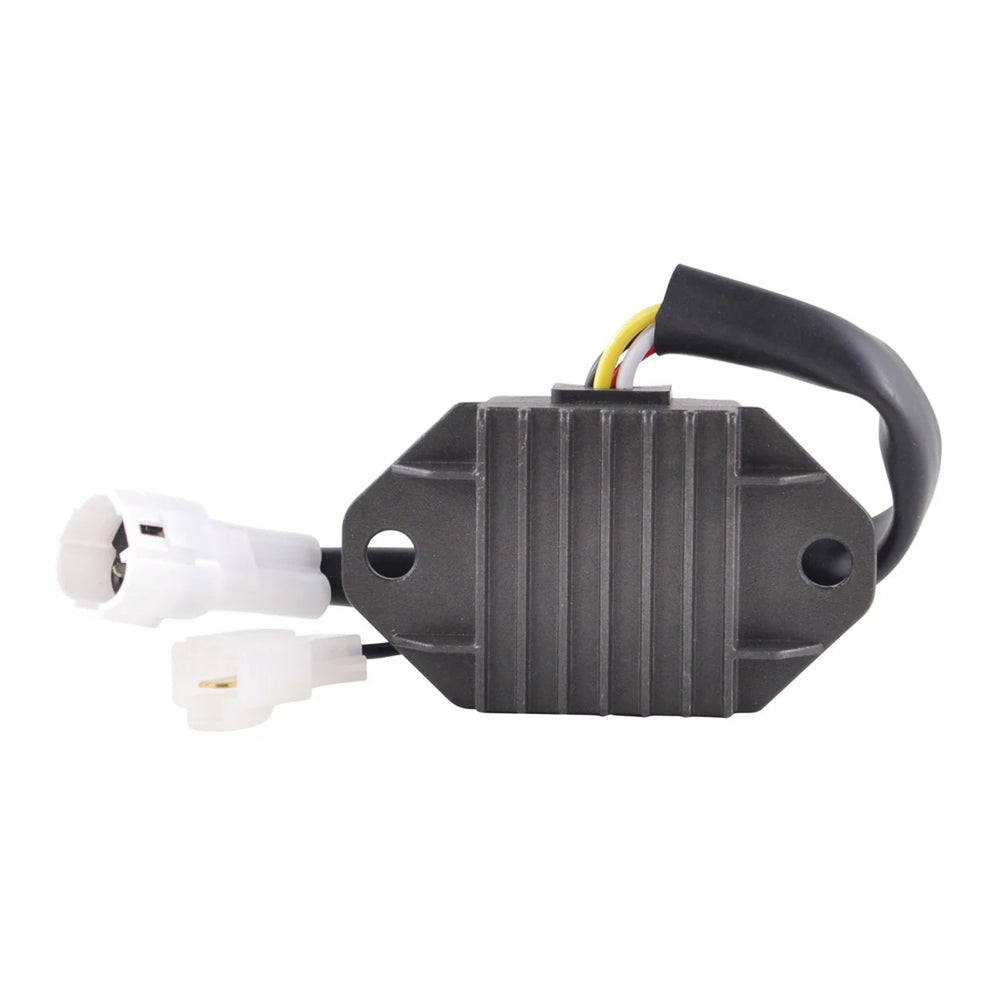

Voltage Regulator Rectifier for Yamaha WR / WRF Models

Brand new aftermarket voltage regulator rectifier.

Features:

• Direct replacement to your original unit.
• Plug-and-play direct fit easy installation.
• No assembly required.
• Higher grade of electric components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions:

• Width: 43mm
• Length: 37mm
• Height: 16mm
• Wires length: 142mm
• Distance between fixation holes centre to centre: 60mm

Other specifications:

• Number of plugs: 2
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: <15 V
• Operation Temperature: -20°C to 85°C
