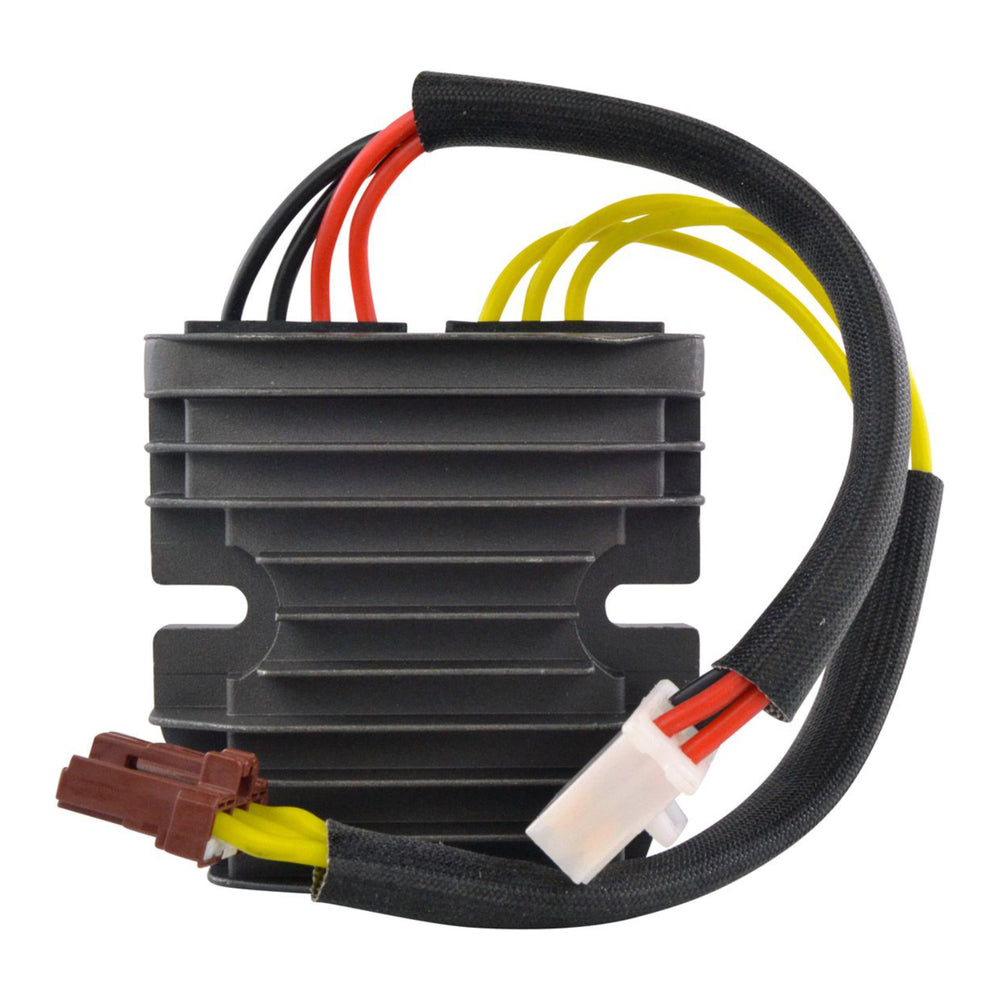

Voltage Regulator Aprilia SL 1000

Direct replacement to your original unit.

• Plug-and-play direct fit easy installation
• Highest grade of lamination materials
• Highest grade of copper winding resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Width: 86 mm
• Length: 90 mm
• Height: 32 mm
• Wires length: 200 mm & 240 mm
• Fixation holes center to center: 75 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V ± 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20°C to 85°C
