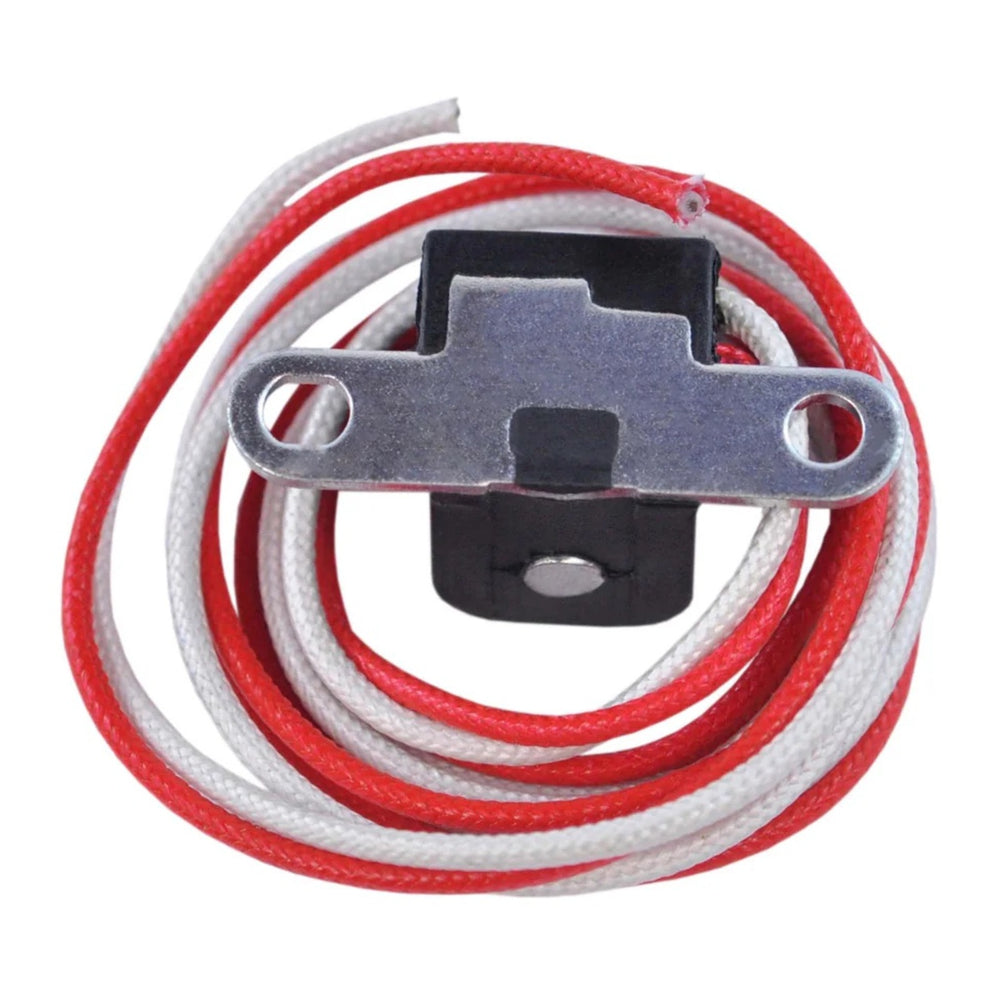

Stator Pickup Pulsar Coil Assorted Models Can-Am / Kawasaki / Yamaha / Suzuki

Brand new pick up coil 500 ohms.

Specifications:

Dimensions

• Height: 23mm
• Length: 19mm
• Width: 19mm
• Bracket centre to centre: 35mm
• Wires length: 800mm

Other specifications

• Number of wires: 2
• Number of terminals: 2

Wire-to-wire resistance

• Red to white = 500 ohms+/-20%
