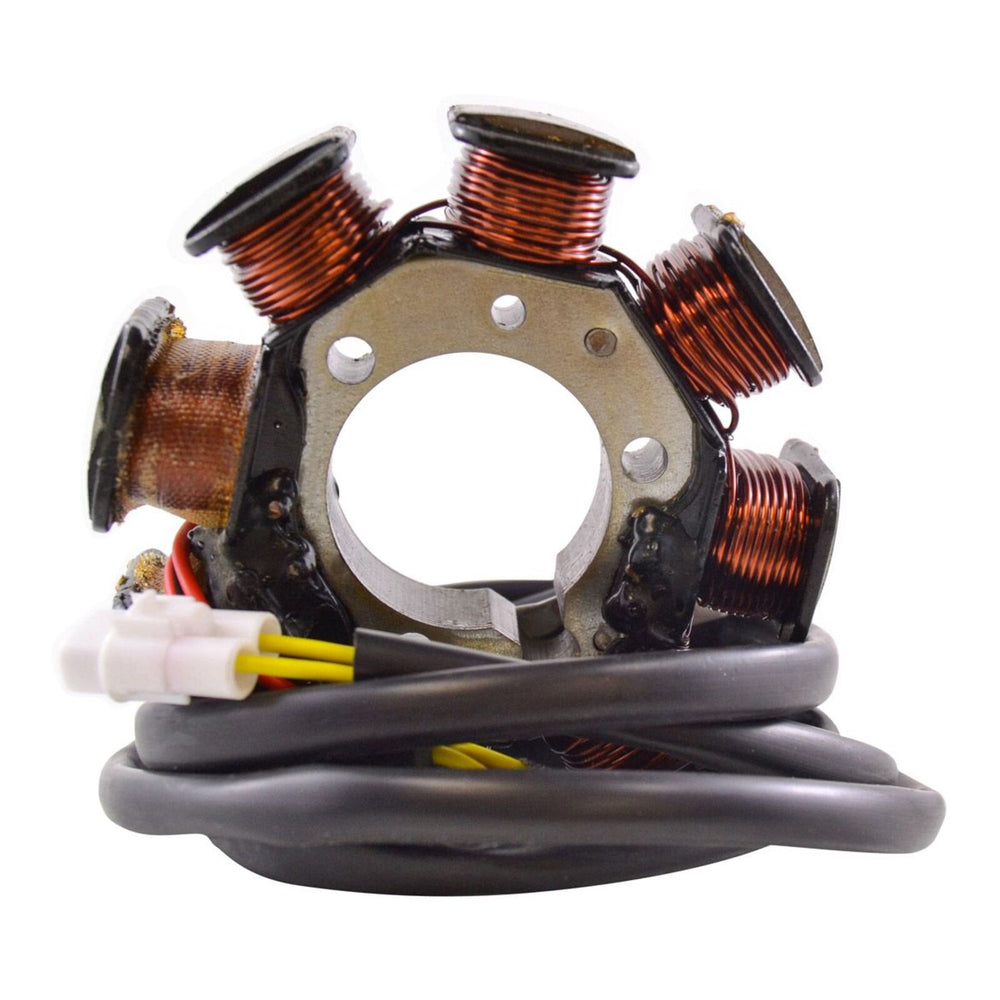

Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)
SKU: WHRMS01318
$479.99 AUD
Shipping calculated at checkout.
Description
Direct replacement for your original unit.
- Plug-and-play direct fit for easy installation.
- Constructed with the highest grade lamination materials.
- Equipped with highest grade copper windings resistant to 200 degrees Celsius.
- Includes connector.
- Includes rubber grommet.
- All products are tested before shipping.
Specifications:
Dimensions:
- Interior diameter: 34mm
- Exterior diameter: 92mm
- Thickness: 18mm
- Length of wires (stator to grommet): 100mm
- Length of wires (grommet to plug): 150mm and 900mm
Other Specifications:
- Number of wires: 4
- Number of plugs: 2
- Number of pins: 4
Wire to Wire Resistance:
- Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
- Source (Red to Black/Red): 140 ohms +/- 20%
