Interior diameter: 35 mm
Exterior diameter: 92 mm
Thickness: 14 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 120 mm
Length of pickup coil's wire to grommet: 90 mm

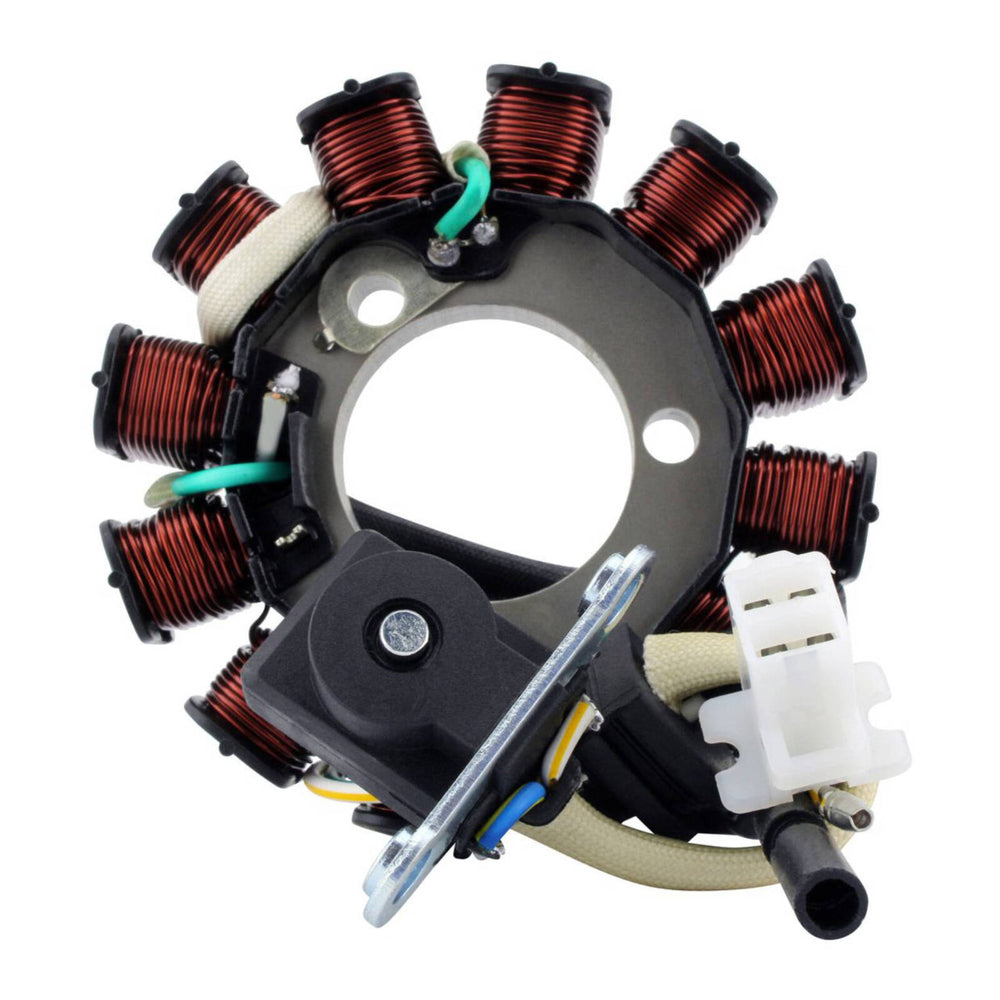

STATOR HON CBF 125 '09-13' CB125
SKU: WHRMS010106061
$114.99 AUD
Shipping calculated at checkout.
Description
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play direct fit easy installation
- Highest-grade lamination materials
- Highest-grade copper windings resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Other specifications:
- Number of wires: 4
- Number of plugs: 3
- Number of pins: 4
- Number of poles: 12
Wire-to-wire resistance:
- Alternator White to Geen: = 0.9 ohms +-20%
- Pickup: White/Yellow to Blue/Yellow = 115 ohms +-20%
