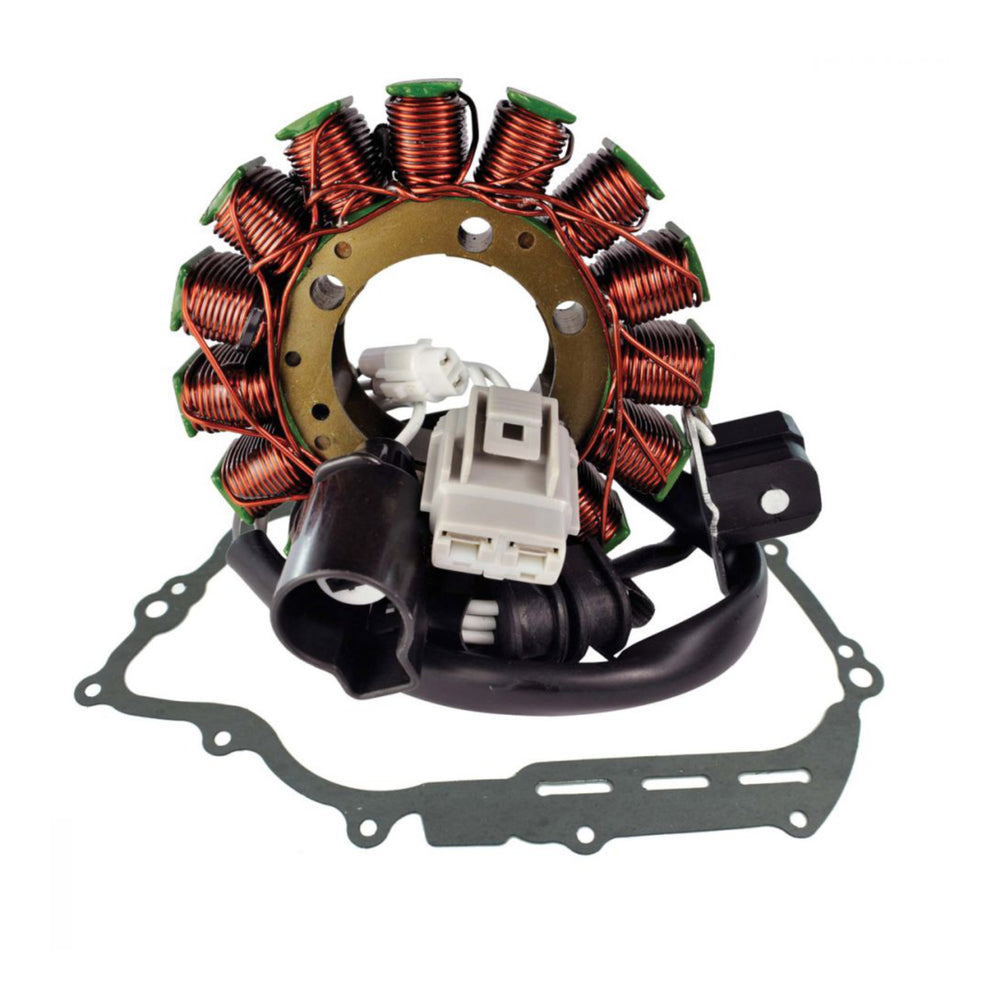

STATOR + GASKET YAM YXR700 YXM700 YXC700 90-97 (RM01191G)

Brand new Kit Stator + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play direct fit easy installation.
• All products shipped are tested

Stator:

• The highest grade of lamination materials
• The highest grade of copper windings resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Specifications:

Dimensions Stator:

• Interior diameter: 41 mm
• Exterior diameter: 105 mm
• Thickness: 19 mm
• Length of wires stator to grommet: 65 mm
• Length of wires grommet to plug: 400 mm
• Length of pickup coil's wire to grommet: 65 mm



Other specifications:

• Number of wires: 5
• Number of plugs: 3
• Number of pins: 5

Wire-to-wire resistance:

• Alternator: White to White = 0.4 ohms +/-20%
• Pickup: White to Grey = 500 ohms +/-20%
