Interior diameter: 37 mm
Exterior diameter: 92 mm
Thickness: 12 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 280 mm
Length of pickup coil's wire to grommet: 55 mm

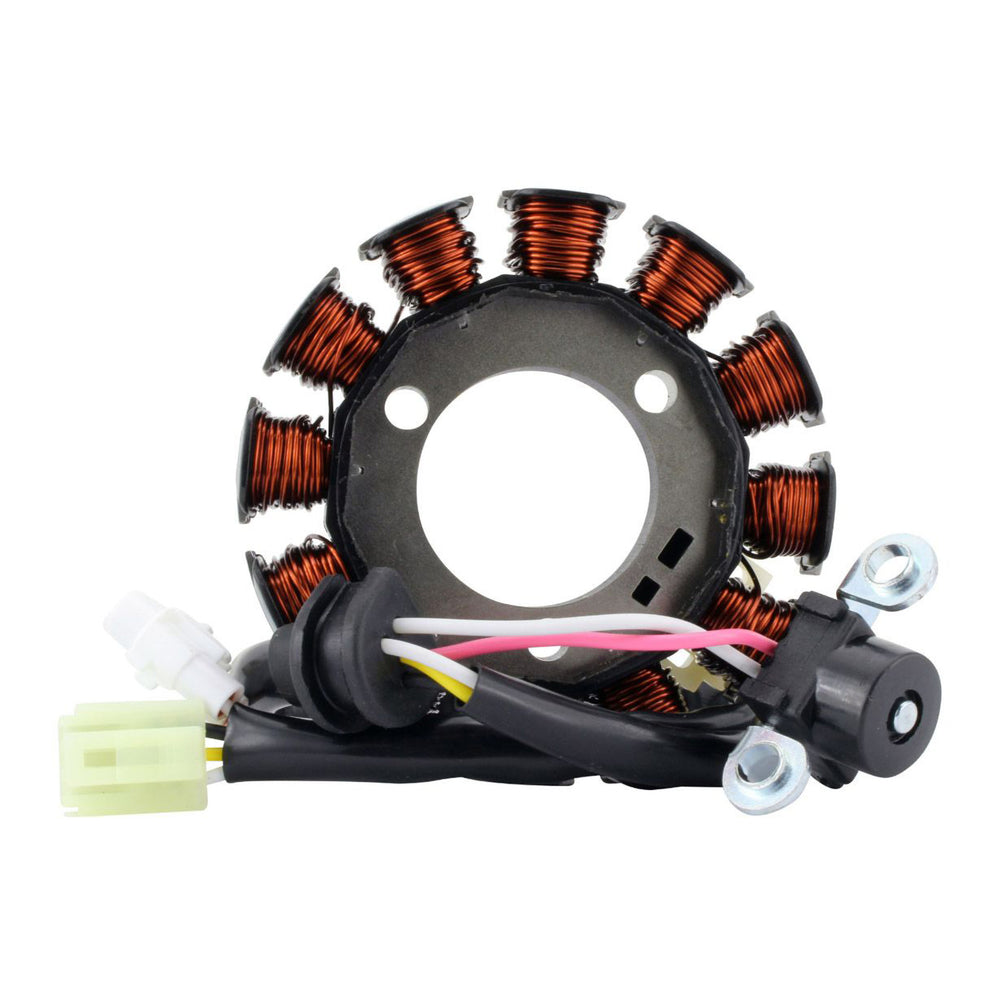

GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)
SKU: WHRMS010107173
$139.99 AUD
Shipping calculated at checkout.
Description
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play direct fit easy installation
- Highest-grade lamination materials
- Highest-grade copper windings resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 12
Wire-to-wire resistance:
- All 1p winding: Black to White = 0.9 ohms +-20%
- Alternator #1: Yellow to Black = 0.6 ohms +-20%
- Alternator #2: Yellow to White = 0.8 ohms +-20%
- Pickup: Pink to White = 280 ohms +-20%
