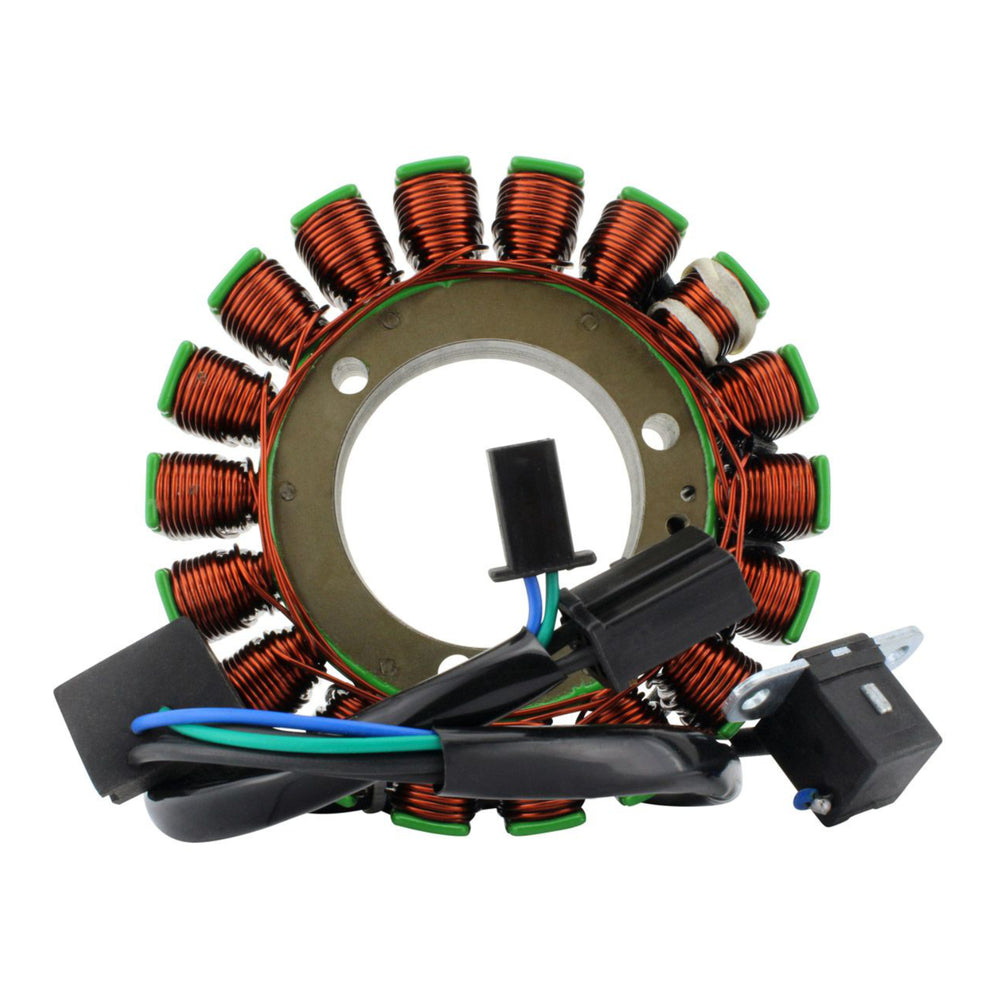

GENERATOR STATOR SUZ VSTORM 1000 02-09 2012
SKU: WHRMS010107577
$359.99 AUD
Shipping calculated at checkout.
Description
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play direct fit easy installation
- Highest grade of lamination materials
- Highest grade of copper winding resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
- Interior diameter: 54 mm
- Exterior diameter: 119 mm
- Thickness: 28 mm
- Length of wires stator to grommet: 160 mm
- Length of wires grommet to plug: 430 mm
- Length of pickup coil's wire to grommet: 150 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
Wire to wire resistance:
- Alternator: Black to Black = 0.4ohms +-20%
- Alternator: to ground = O.L
- Pickup: Green to Blue = 200ohms +-20%
Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
