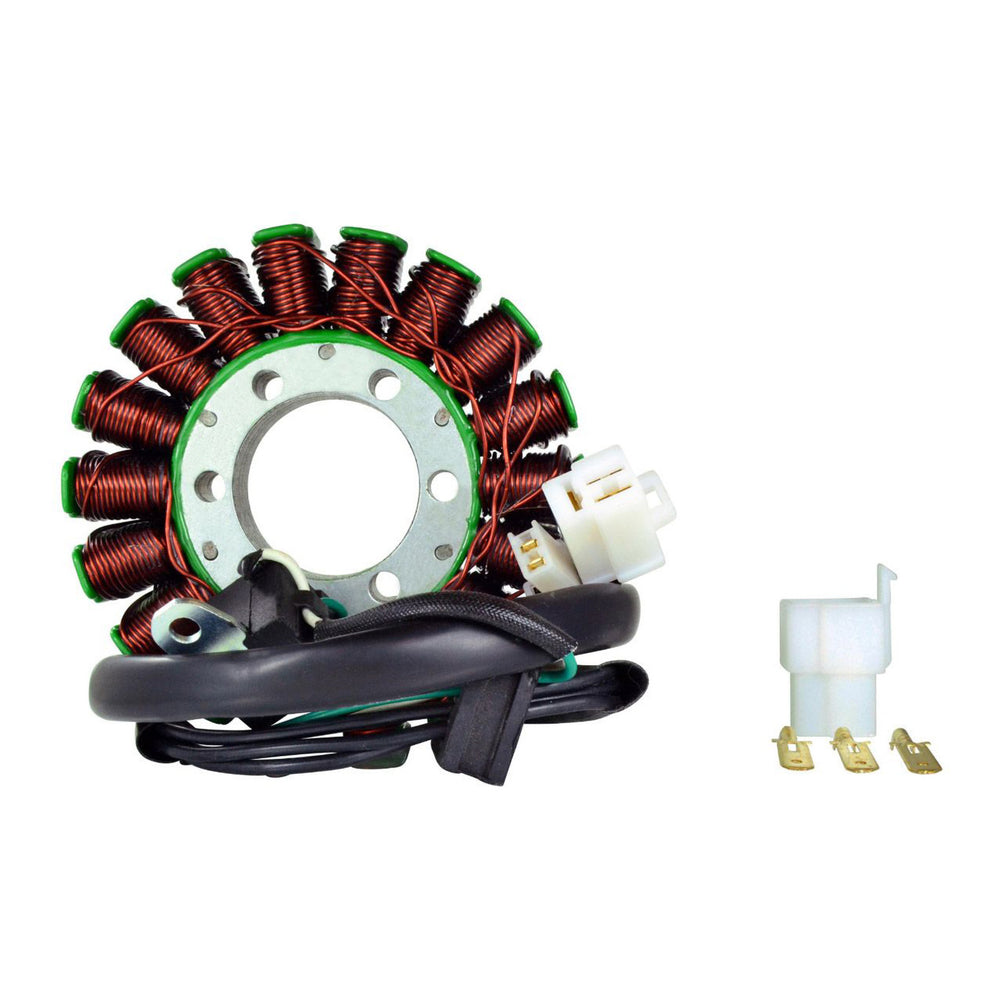

GENERATOR STATOR SUZ SV650 03-09 (RMS010-102166)
SKU: WHRMS010102166
$409.99 AUD
Shipping calculated at checkout.
Description
Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play direct fit easy installation
- Highest-grade lamination materials
- Highest-grade copper windings resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
Specifications:
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 108 mm
- Thickness: 19 mm
- Length of wires stator to grommet: 120 mm
- Length of wires grommet to plug: 550 mm
- Length of pickup coil's wire to grommet: 59 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
Wire-to-wire resistance:
- Alternator: Black to Black = 0.5 ohms +-20%
- Pickup: Green to White = 194 ohms +-20%
