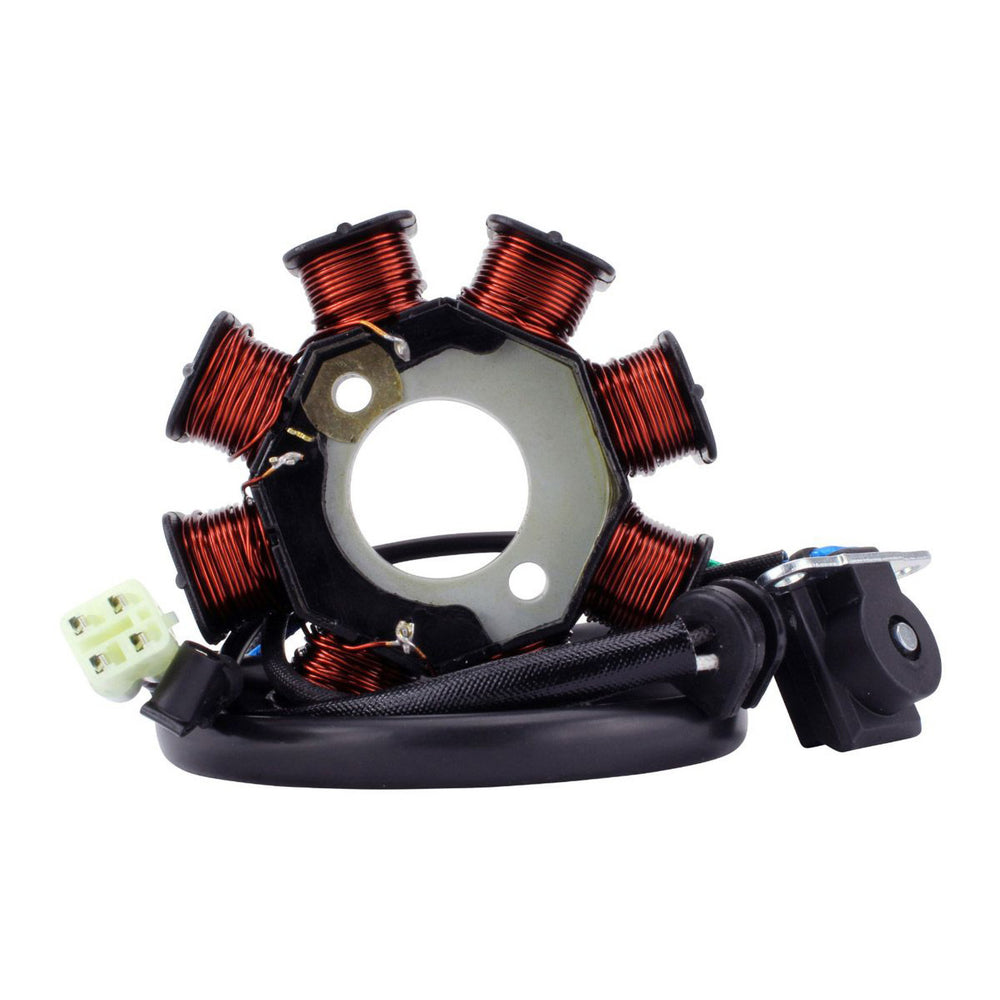

GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play direct fit easy installation
• Highest-grade lamination materials
• Highest-grade copper windings resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions :

• Interior diameter: 29 mm
• Exterior diameter: 88 mm
• Thickness: 10 mm
• Length of wires stator to grommet: 110 mm
• Length of wires grommet to plug: 475 100 mm
• Length of pickup coil's wire to grommet: 145 mm

Other specifications :

• Number of wires: 4
• Number of plugs: 2
• Number of holes: 2
• Number of poles: 8
• Alternator : White to Ground = 1.1 ohms +-20%
• Pickup: Blue/yellow to Ground = 119 ohms +-20%
