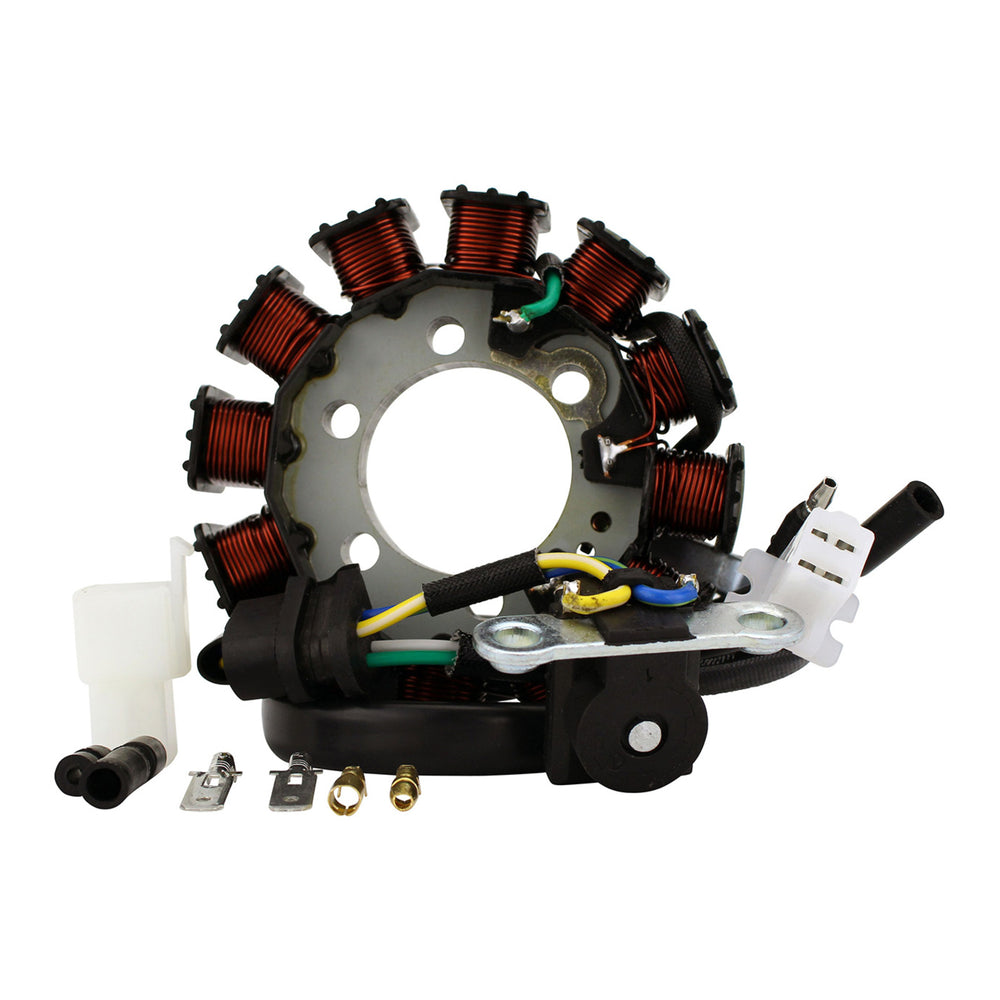

GENERATOR STATOR HON CRF110F 19-21 (RMS010-107086)
GENERATOR STATOR HON CRF110F 19-21 (RMS010-107086)

GENERATOR STATOR HON CRF110F 19-21 (RMS010-107086)

$269.99 AUD
Shipping calculated at checkout.

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 92 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 100 mm
  • Length of wires grommet to plug: 380 mm
  • Length of pickup coil's wire to grommet: 20 mm

    • Other specifications:

    • Number of wires: 4
    • Number of plugs : 3
    • Number of pins: 4
    • Number of poles: 12

    Wire-to-wire resistance:

    Alternator: = White to Green 0.8 ohms +-20%
    Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20

    SKU: WHRMS010107086
